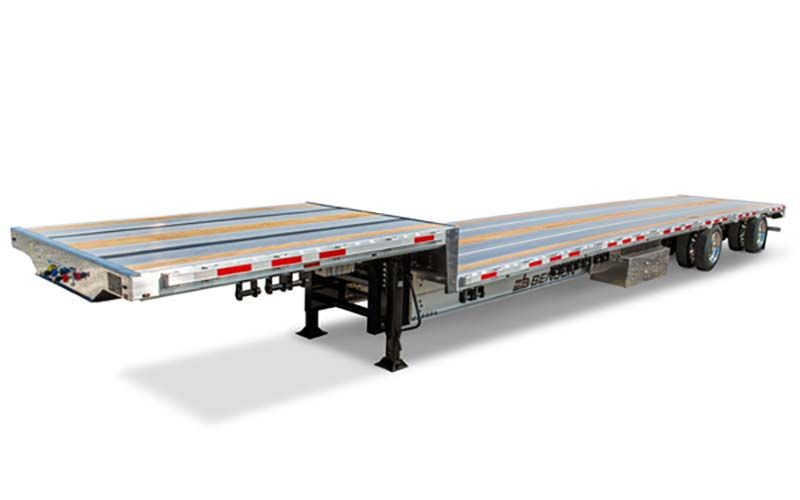

Aluminum Drop Decks Benson
| Manufacturer: Benson |
Request a Quote
Make & Model
Benson
Detailed Specification
28’- 53’
96” and 102”
10’ or 11’
524: 52,000 in 4’ / 55,000 lb in 10’ / 105,000 lb evenly distributed
524: 9,203 lb/4,174 kg
1) Welded, 2-piece, 6061 T6 extruded aluminum “T” cross sections. 2) Beams welded along neutral axis. 3) Floor sections welded to top flange of main beam. 4) Top tee extrusion with integral Lock-Rite™ groove. 5) Main beam camber cut in lower aluminum “T” section.
1) High tensile steel neck for increased strength. 2) Bright finish, fabricated aluminum front crossmember. 3) Center mount glad hands and 7-way on removable access panel. 4) 1/4” steel coupler plate welded to neck. 5) Heavy-duty cross and aft bracing.
1) Closed section extruded rear light box. 2) Three rear stake pockets with extruded pocket protector. 3) Tubular bumper uprights with flanges for mounting accessories. 4) Extruded grip surface on top of bumper tube. 5) Rubber dock bumpers mounted vertically with three bolts. 6) Bumper assemblies are United States Department of Transportation (DOT) and Transport Canada compliant.
1) Extruded box section side rail with integral Lock-Rite groove. 2) Radius edges to prevent strap damage. 3) “LL” sliding winch track roadside, bolt-on design. 4) Tumbled aluminum stake pockets on 24” centers.
1) 4-7/8” aluminum C-channel crossmembers on 16” centers. 2) 1-1/4” hollow core box design, extruded aluminum floor boards with four apitong nailers, two singles outside, double in the center. 3) Crossmembers welded vertically to siderail and main beam; horizontally to floor.
1) Lightweight, formed suspension crossmembers at suspension hangers and air springs. 2) Bolt-on, lower steel C-channel and strut bracing. 3) Air suspension with manufacturer’s 5-year warranty. 4) 121” tandem widespread axle setting, large bearings, parallel “P” spindle wheel ends and axle alignment.
1) Air and electrical accessible through removable front plate. 2) Below deck air and wire routing. 3) Enhanced visibility lighting system with recessed oval lights. 4) LED lights, five side marker lights per side, dual function lights correspond with turn signals. 5) Anti-lock brake system (ABS).
https://www.wabashnational.com/docs/default-source/platform-trailers-downloads/benson-downloads/benson-flatbed-trailer-aluminum-drop-deck.pdf?sfvrsn=5f6378d9_6
Description
LOWER THE DECK TO INCREASE YOUR PAYLOAD. A drop deck trailer increases versatility and allows you to haul more—especially loads with special requirements. High-performing, lightweight aluminum drop deck trailers from Benson give you low-cost, low-maintenance miles whether you haul regionally or cross-country. Our nationwide network of highly trained dealers customizes our aluminum drop deck trailers to meet your specific needs. With engineering and features designed to increase safety, decrease weight and increase load capacity, our trailers give you results and peace of mind.
