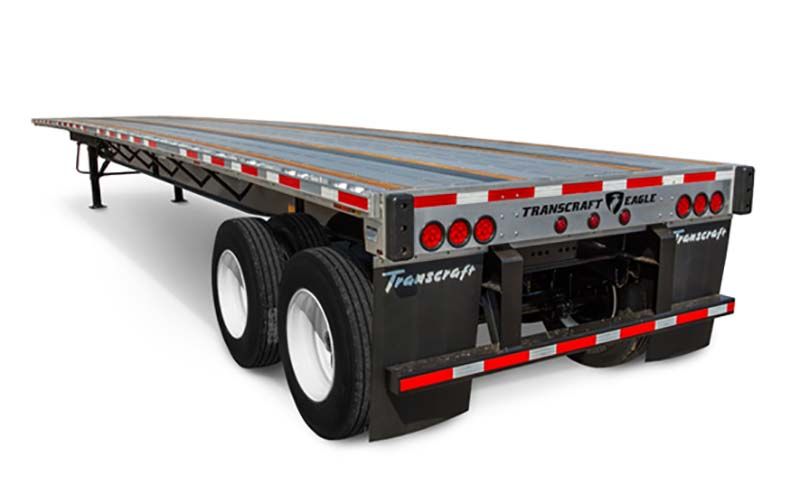

Transcraft EAGLE COMBO FLATBEDS

Last Updated: 05/11/2023 01:51 PM
Manufacturer: Transcraft

Make & Model

Transcraft

Detailed Specification

FLATBED
28’- 53’
96” and 102”
554: 55,000 lb in 4’ / 60,000 lb in 10’ / 93,700 lb evenly distributed, 654: 65,000 lb in 4’ / 70,000 lb in 10’ / 110,400 lb evenly distributed, 734: 73,000 lb in 4’ / 80,000 lb in 10’ / 125,000 lb evenly distributed
554: 9,896 lb, 654: 10,099 lb, 734: 10,686 lb
Main beam flange and web fully welded at all flange-web joints, High-strength 50,000-PSI steel web, Web to flange attached by 100% automated continuous weld, Heat-treated, high-strength steel flanges rated at 130,000 PSI, Cross braces on 24” centers and knee braces on nominal 48” centers
Fabricated aluminum front crossmember, Center mount glad hands, 7-way on removable access panel, 1/4” steel coupler plate tested to SAE J133 performance criteria
Three rear stake pockets integral to rear plate, Horizontal bumper end caps for corrosion protection, Rubber dock bumpers mounted vertically with three bolts, Bumper assemblies are United States Department of Transportation (DOT) and Transport Canada compliant
Bolt-on, integrated winch track siderail made with 6061-TX extruded aluminum, Radius edges and extruded aluminum rub rail with recessed groove, Extruded aluminum stake pockets on 24” centers, Lock-Rite II multi-position tie down system, Large diameter double pipe spools
80K high tensile, 4” steel “I” beam crossmembers on 12” centers, Mylar gaskets installed between aluminum and steel components
Widespread K-bracing and angular gussets, Suspension support gussets with triangular truss design, 121” tandem widespread axle setting, Axle alignment, large bearings, parallel “P” spindle wheel ends
Air and electrical accessible through removable aluminum front plate, Below deck air and wire routing, Enhanced visibility lighting system, LED lights, five side marke lights per side, dual function lights correspond with turn signals, Anti-lock brake system (ABS)

Description

AMERICAN-MADE VERSATILITY.
One of the first combo trailers, the Eagle is back and better than ever. Now with more load securement versatility, 3D automotive-style badging and more, rest assured that the Eagle remains as rugged and dependable as back in the day. For high-strength performance without added weight, count on the Eagle to haul more and stay on the road longer.
